Class 100 Laminar Flow Hoods Painted Steel Frame Fluorescent Lamp / UV Light

for Clean Room Laminar Flow Hoods Class 100 Painted Steel Frame

Laminar Flow Hoods

Features
Speed control
Lower operating budget design
Low operating noise
Customized dimension

Frame: stainless steel or painted steel.
Type: horizontal or vertical
Platform: stainless steel with holes or without
Light: fluorescent lamp or UV light
Pressure gauge: if required
Air velocity adjustable: three level adjust
or infinitely variable speeds.
Fan: 315mm diameter aluminum alloy, back centrifugal fan.
( or EBM fan made in Germany )
Air velocity: 0.45m/s±20% adjustable
Working area cleanliness level: class 100.
( max particle contain: 3530pcs per CBM @ 0.3μm )
Usage environment: temp 80℃,humidify: 80%
Power system: AC or DC.

Option
Pressure gauge
Control system
UV light

Mini-pleated HEPA Filter inside
Efficiency: H13, H14, U15 ( EN:1822 )
Filter media: glass fiber
External frame: aluminum alloy
Sealant: polyurethane
Gasket: EVA or fluid gel
Face guard: painted metal steel ( both inlet and outlet side )

laminar air flow chamber

Laminar Flow Clean Bench

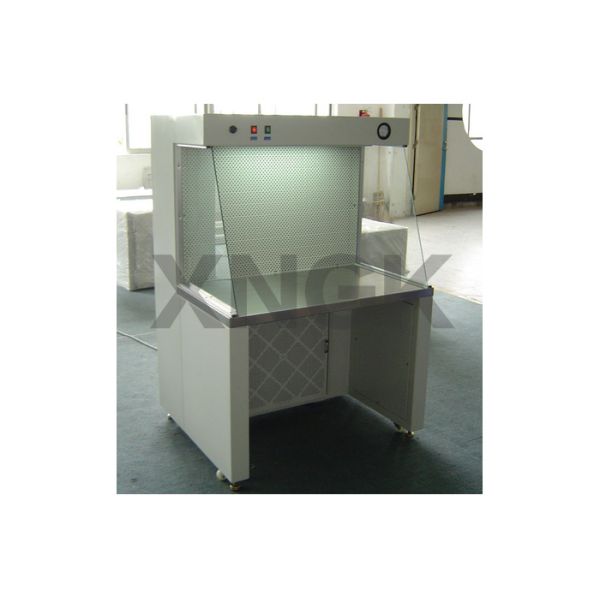

Class 100 Laminar Flow Hoods Painted Steel Frame Fluorescent Lamp / UV Light Images
