Brand Name : SAF
Model Number : XN-L1
Certification : ISO9001
Place of Origin : Shenzhen China (Mainland)
MOQ : 10
Price : 20-100USD
Payment Terms : D/A, L/C, D/P, T/T
Supply Ability : 5000per month
Delivery Time : Sample order in 1-2 days, mass production within 7-20 days
Packaging Details : With wooden frame for air condition has two packing ways 1.be packed into a good protective carton and wooden crate 2.regarding your design and requirement
Efficiency : H13 H14
Construction : gel seal hepa filter
TyFiltration Gradepe : Hepa Filter
Media : Fiberglass
Porosity : 0.3u
Brand name : Customized
Weight : 2kg
Warranty : 12 months
Color : white
Frame : Anodized aluminium
Sealant : ceramic glue
Gasket : silicon glue
MOQ : 10
Original port : Shenzhen china
Normal packaging : Carton box
Separator : Hot melt glue
pleated times : 11per 10cm
Advantage:
· Compliant to VDI 6022
· Microbial inert components acc. to ISO 846
· Tested for Food Contact acc. to EC 1935:2004
· Free of bisphenol-A, phthalate and formaldehyde
· Chemically resistant to inactivation and cleaning procedures
Application:
1. Hepa air filter used for electronic, medicament,food.
2. clean room( suitable for use in multilayer filter filtration system )
3. HEPA filter for clean rooms and LAF benches
Grille, Upstream: Expanded metal painted (RAL 9010)
Grille, Downstream: Expanded metal painted (RAL 9010)
EN 1822 (Efficiency @ MPPS): H14(≥99,995%)
Rec. final pressure drop: 2x Initial pressure drop
Max. final pressure drop: MD: 500 Pa, MX: 600 Pa, MG: 800 Pa
Maximum airflow: Nominal flow rate (if not, efficiency drops)
Temperature max: 80ºC
RH. max: 100%
Remarks: Individually scantested acc. EN 1822:2009 with protocol and packed in PE-foil. Compliant with ProSafe requirements. Other editions on request
Features :
1. high efficiency for H13,h14,is the finally filtration in clean room that use for filter the particles more than 0.3um.
2. large dust capacity,because the filter media adopts the ultrathin glass fiber, the hot melt glue spacing each pleats in regular so that achieve high dust volume.
3. aluminum frame can anticorrosion for long time.
4. sealant around the media prevent the air filter is without any air leaking.
5. hepa filter with metal screens,prevent the media is without any damage.
6. light weight for easy to install.
FAQ:
It is washable: | Yes |
You are an air filter manufacturer: | Yes |
How many pleated times per 10 cm | >11cm |
How much temperature can resist | 250-400 |
Can be accepted custom size and color: | Yes |
![]() |

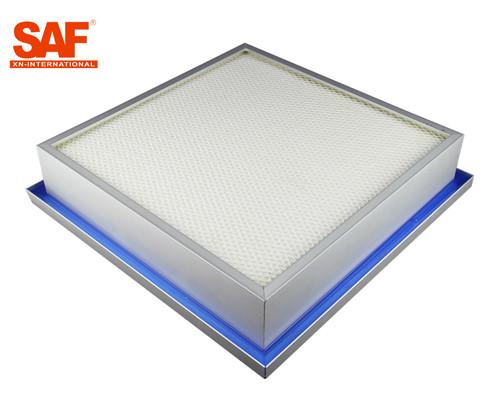

Liquid Tank Silicon Sealed Cleanroom HEPA Filter Hospital And Food Industry Use Images |
