F5 Non-woven bag type filters synthetic fiber filter high air flow rate low pressure drop
Product introduction:
The Non woven pocket filters is a wonderful replacement for V bank filters, comparing with the V bank filters, pocket filters can give a same air flow rate and larger dust holding ability, also the price is relatively cheaper.
Galvanized steel frame is the most common construction for second pocket filters, at the first, galvanized steel frame is cheaper than aluminum alloy frame, pocket filters should be replaced frequently, so choose economic product is necessary; also the galvanized steel frame is very strong so it won`t shake and broken when installing and applying. Our pocket filters use the new art craft, each part of the frame is connected by dieless clinching; 16 gauge galvanized steel frame is anti-rust, can be used in moist environment.

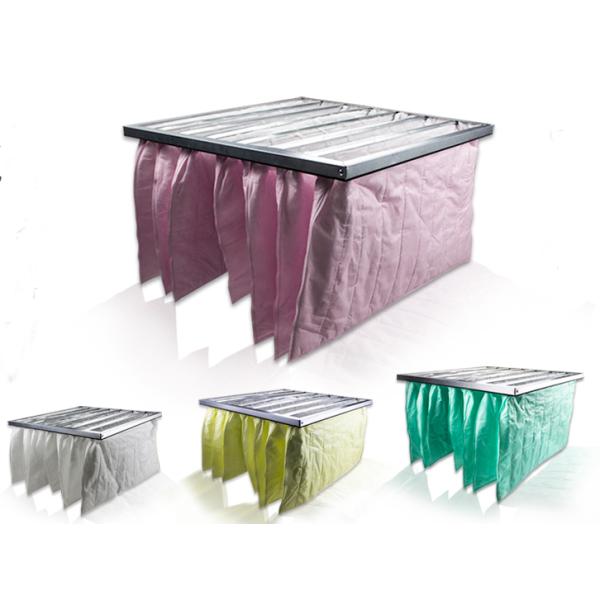

The color for different efficiency pocket filters.
F5-white, F6-Green, F7-Pink, F8-Yellow; customized color available.
Main application:
The pocket filters can be used as the final filtration in normal air ventilation systems, be applied in airport, school, library, mall, supermarket. The F8 efficiency pocket filters is enough for particle release in those occasions, it`s no need to add H13 efficiency HEPA filters.Pocket filters consist of synthetic filter media, or glass fiber media, filter frame can be galvanized steel or aluminum alloy.
Technical Parameters:
| Model | Dimension(mm) | Rated air flow (m³/h) | Resistance(Pa) | Efficiency (Arrestance) |
| SAF-CG-8 | 595*595*381*6p | 2000 | 50 | 40%- 50% |
| SAF-CG-13 | 595*595*500*6p | 2500 | 50 | 40%- 50% |
| SAF-CG-16 | 595*595*600*6p | 3000 | 55 | 60%-70% |
| SAF-CG-22 | 595*595*381*8p | 2600 | 60 | 75%-85% |
| SAF-CG-27 | 595*595*500*8p | 3200 | 65 | 85%-95% |
| SAF-CG-32 | 595*595*600*8p | 4000 | 65 | 85%-95% |
The size can be customized according to customers requirement
If you want to know more about our products,feel free to contact me!
