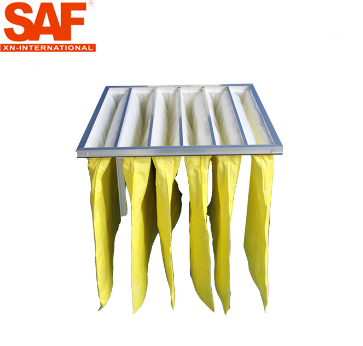

F8 Bag type filter 5 micron medium efficiency non-woven Ventilation system cleaning air filters
Product introduction:
Air filter performance is measured by dust holding capacity and efficiency. Greater dust holding capacity means longer service life and lower operating costs. Greater efficiency means cleaner air and reduced maintenance costs. The SAF filters (Bag Filters) excel in both of these performance characteristics. We have MERV 14, MERV 13, MERV 11, and MERV 9available in both Synthetic and Fiberglass.
Bag filters are designed for use in areas that demand the highest degree of air cleanliness including hospitals, schools, industrial facilities and office complexes..
The color for different efficiency pocket filters.
F5-white, F6-Green, F7-Pink, F8-Yellow; customized color available.
Main application:
The pocket filters can be used as the final filtration in normal air ventilation systems, be applied in airport, school, library, mall, supermarket. The F8 efficiency pocket filters is enough for particle release in those occasions, it`s no need to add H13 efficiency HEPA filters.Pocket filters consist of synthetic filter media, or glass fiber media, filter frame can be galvanized steel or aluminum alloy.
Technical Parameters:
| Model | Dimension(mm) | Rated air flow (m³/h) | Resistance(Pa) | Efficiency (Arrestance) |
| SAF-CG-8 | 595*595*381*6p | 2000 | 50 | 40%- 50% |
| SAF-CG-13 | 595*595*500*6p | 2500 | 50 | 40%- 50% |
| SAF-CG-16 | 595*595*600*6p | 3000 | 55 | 60%-70% |
| SAF-CG-22 | 595*595*381*8p | 2600 | 60 | 75%-85% |
| SAF-CG-27 | 595*595*500*8p | 3200 | 65 | 85%-95% |
| SAF-CG-32 | 595*595*600*8p | 4000 | 65 | 85%-95% |
The size can be customized according to customers requirement
If you want to know more about our products,feel free to contact me!
