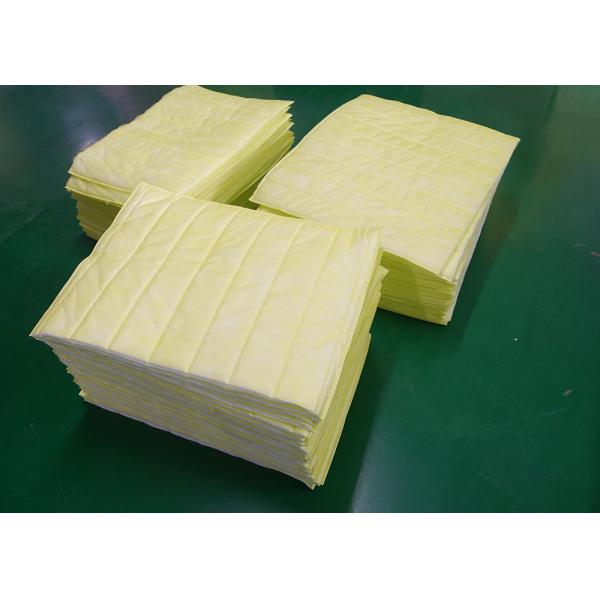

Synthetic Media Galvanized Steel Frame Pocket Air Filter
the synthetic media galvanized steel frame pocket filter is an ideal filter to replace V bank medium filter. cause it has large dust holding ability and stable performance.
By adding pocket filters can enlarge the service life of HEPA filters. It`s necessary to replace pocket filters in time.
Features:
1. High loft, layered synthetic material
2. Large air flow rate, low pressure drop
3. V shape pocket design
4. Good performance in turbulent air flow
5. Reinforced frame prevent air leakage
Technical parameters:
| Dimension | Efficiency | Air flow rate / Initial pressure drop ( m3/h / Pa ) | Air flow rate / Initial pressure drop ( m3/h / Pa ) | Pockets | Media area ( m2) |
| 592*592*600 | F5 | 2500 / 35 | 3800 / 50 | 8 | 6.5 |
| F6 | 2500 / 45 | 3800 / 65 |
| F7 | 2500 / 80 | 3800 / 115 |
| F8 | 2500 / 90 | 3800 / 135 |
| 592*592*600 | F5 | 2500 / 40 | 3800 / 55 | 6 | 5.0 |
| F6 | 2500 / 55 | 3800 / 80 |
| F7 | 2500 / 85 | 3800 / 125 |
| F8 | 2500 / 95 | 3800 / 140 |
| 490*592*600 | F5 | 2200 / 40 | 3100 / 55 | 5 | 4.5 |
| F6 | 2200 / 55 | 3100 / 80 |
| F7 | 2200 / 85 | 3100 / 125 |
| F8 | 2200 / 95 | 3100 / 140 |
| 287*592*600 | F5 | 1200 / 40 | 1800 / 55 | 3 | 2.5 |
| F6 | 1200 / 50 | 1800 / 80 |
| F7 | 1200 / 85 | 1800 / 125 |
| F8 | 1200 / 95 | 1800 / 140 |
| 592*592 *560 | F5 | 2500 / 40 | 3800 / 55 | 8 | 6.5 |
| F6 | 2500 / 50 | 3800 / 70 |
| F7 | 2500 / 85 | 3800 / 125 |
| F8 | 2500 / 100 | 3800 / 145 |
| 490*592 *560 | F5 | 2100 / 40 | 3100 / 55 | 6 | 4.5 |
| F6 | 2100 / 50 | 3100 / 70 |
| F7 | 2100 / 85 | 3100 / 125 |
| F8 | 2100 / 100 | 3100 / 145 |
| 287*592*560 | F5 | 1200 / 45 | 1800 / 55 | 3 | 2.5 |
| F6 | 1200 / 60 | 1800 / 85 |
| F7 | 1200 / 90 | 1800 / 135 |
| F8 | 1200 / 100 | 1800 / 150 |
Pressure drop range: ±15%
According to clients` requirements offer different specifications
Applications:
second filter for clean room air ventilation system,
pharmaceuticals, automotive, food processing, commerce, office building, hotel HVAC system.
Description:
Pocket filters are not expansive, and they offer quite good performances such as high air flow rate, large dust holding capacity, it`s very easily to install. For some particular occasion such as strong humidity and strong acid and alkali, glass fiber media is recommend.
The frame is galvanized steel or aluminum alloy, in fact, galvanized steel is a very good material, and it`s cheaper than aluminum alloy, if you order large QTY, galvanized steel frame is a good choice.
