Synthetic F7 Multi Pocket Air Filter

Brand Name : XNGK

Model Number : XN-M2

Certification : CE/ROHS

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T or western Union or LC

Supply Ability : 3,000pcs per month

Delivery Time : 10-20 working days according to the QTY

Packaging Details : Plastic bag inside, carton box outside, wooden case if required

Product Name : Multi pocket air filter

Application : HVAC

Filter efficiency : M5-F9 EN:779

Frame : Aluminum Alloy or gal steel

Size : Standard or Customized

Feature : Large Dust Holding

Sealant : Sealed by ultrasonic

Gasket : Neoprene if required

Final pressure drop : 450Pa

Environment : 80℃

Contact Now

Multi Pocket Design Bag Air Filter High Efficiency for Air Ventilation

Features:

1. Multi pocket design, maximize air flow rate;

2. Layered filter media, enlarge the dust holding;

3. V Style pocket, make full use of the media;

4. Can be used in turbulent air flow;

5. Gal or Al alloy frame, strong frame;

Technical parameters:

Dimension	Efficiency	Air flow rate / Initial pressure drop ( m³/h / Pa )	Air flow rate / Initial pressure drop ( m³/h / Pa )	Pockets	Media area ( m2)
592592600	F5	2500 / 35	3800 / 50	8	6.5
	F6	2500 / 45	3800 / 65
	F7	2500 / 80	3800 / 115
	F8	2500 / 90	3800 / 135

Pressure drop range: ±15%

According to clients` requirements offer different specifications

Applications:

Second filter for clean room air ventilation system,

Protect HEPA filter from large dust size 0.5-1 Micron,

enlager the HEPA filter service life;

Description:

Mulit pocket design make the pocket filters give max air filter area in limited space;

The filter media is multi layered polyester fibre that have good performance of dust holding, and can remove the fine particle with good efficiency;

Filter media connect with the frame with glue, make sure no air leakage;

All the filter media sealed by ultrasonic machine, ensure no air escape;

Synthetic F7 Multi Pocket Air Filter

Product Tags:

air bag filter

air handler filters

Wholesale Synthetic F7 Multi Pocket Air Filter from china suppliers

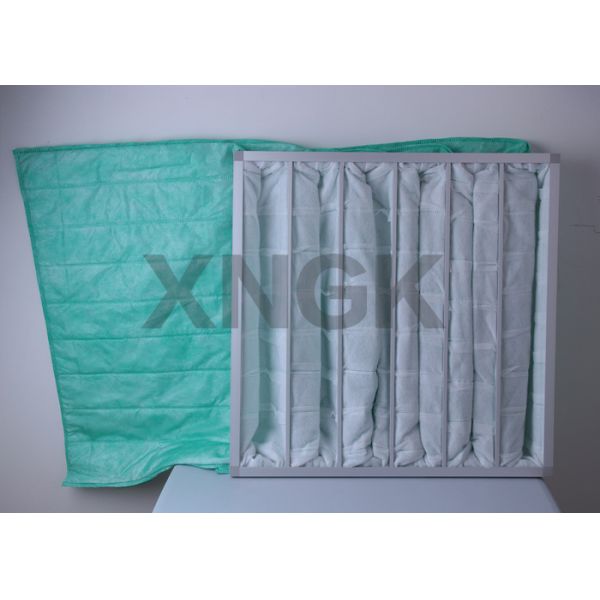

Synthetic F7 Multi Pocket Air Filter Images
